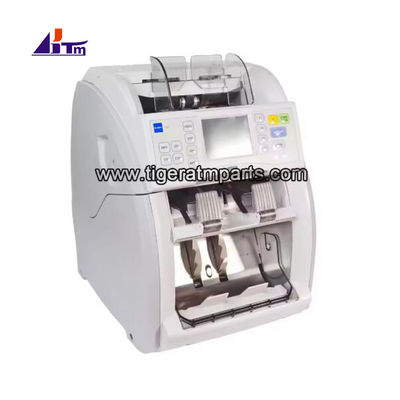

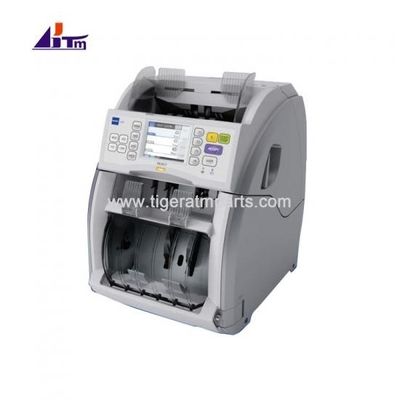

Glory USF-52C Banknote Counter Sorting Machine All in One Cash Processor
Discover the Glory USF-52C All-in-One Cash Processor – a compact banknote counter sorting machine with dual-sided scanning, 6 anti-counterfeit sensors, and efficient processing. Ideal for banks & financial institutions.
Technical Specifications:
| Category | Details |
|---|---|
| Model | USF-52C |
| Max Speed | 1,000 notes/minute |
| Capacity | 500 notes (input), 200 notes (output) |
| Power | 100–240V AC, 50/60Hz |
| Weight | 8 kg |
- High-Resolution Dual Sided Scanning:Equipped with double sided scanning using linear sensors, ensures clear and comprehensive banknote imaging.
- Comprehensive Counterfeit Analysis:Generates 6 different anti-counterfeiting images with thickness sensor for thorough examination.
- Advanced Counterfeit Detection:Features 6 sensors including visible light, infrared, and magnetic for robust anti-counterfeiting measures.
- Efficient Banknote Processing:Easily accessible banknote transmission channel and dust gate enhance the processing speed and accuracy.
As a compact banknote counter machine, the USF-52C can be placed in any position on the workbench, widely implementing banknote counter processing throughout your entire branch network.
Glory's advanced banknote scanning technology
• Double sided scanning linear sensor - High resolution and ultra long sensors scan banknote images clearly and completely.
• Visible light and infrared sensors - use 6 sensors to perform double-sided scanning on banknotes, generating 6 different anti-counterfeiting images.
• Magnetic linear sensing - Magnetic sensors can safely monitor every part of the entire banknote.
• Thickness sensor - The thickness sensor can detect tape and tension.
Other characteristics
• Easily open the banknote transmission channel
• Dust gate
• Crown size reading
| Size (length × wide × High) | 300 mm × 360 mm × 360 mm |
| Weight | 18kg |
| Speed | 720-1000 sheets/minute |
| Capacity | Cash outlet: about 200 sheets Refund port: about 100 sheets Cash inlet: about 500 sheets |
| Supply voltage | 100–240V ±10%, 1.2A–0.6A, 50/60Hz |
| Power consumption | 73W |
| Mode |
Mixed version (directional sorting)/split version (directional sorting) /count/serial number reading/sorting |
| Serial number | About 650 sheets/minute * 4 directions |
| Monitor | TFT color display screen 70 mm × 53 mm |
| Interface | 232C, USB, LAN |
| Option | Printer/External Display/Keyboard Upgradeable to multiple currency versions (Up to 16 currencies and 256 denominations) |
