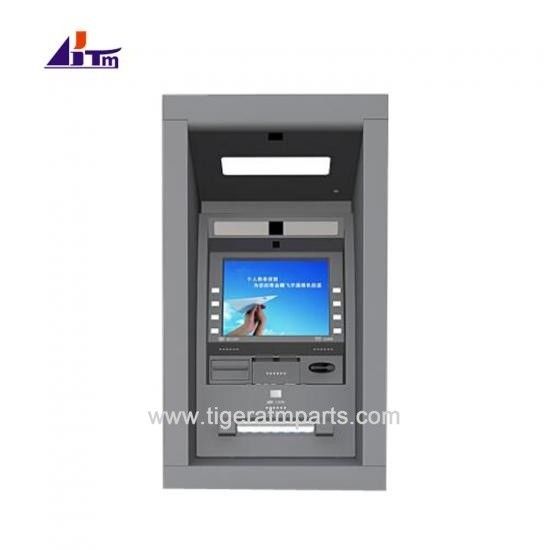

KT1688-A9 KingTeller Through-The-Wall Cash Dispenser ATM
Functionalities
Withdrawal
Inquiry
Transfer
Change of PIN
Multimedia (optional)
Card top up (optional)
Mobile payment (optional)
Bill payment (optional)
Specifications
| User-interface |
15" TFT LCD display, voice guidance 8 FDKs and / or touch display EPP keypad be compliant with PCI, vandal resistance Loudspeakers |
| Card Reader |
Motorized hybrid or dip card reader, EMV certified Support magnetic/smart card Card retracted if not removed Card returned if power failed |
| Dispenser |
Frictional bundle delivery Max. 60 notes per bundle Dispensing speed: 7 notes per second 2-4 cassettes, up to 3000 notes per cassette Reject & retract bin Cassette lock (optional) |
| Control Unit |
Intel core 2 Duo 3.0 CPU, 2G RAM 250G HDD, DVD ROM (optional) Operating system: Window XP Printer Receipt printer: 76mm thermal graphic printer Journal printer: 80mm dot matrix or thermal printer |
| Communication |
Standard TCP/IP Optional: dial-up, wireless, X.25, SNA/SDLC |
| Security |
UL291 Standard level 1 Dial combination lock mechanism Fraudulent device inhibitor (FDI) EPP shield Privacy filter (optional) Customer awareness mirror Built-in cameras Integrated media entry/exit indicators |
| Optional |
Barcode reader Fingerprint reader Contact-less card reader Heat booster Electronic journal |
| Operating Environment |
Voltage: 100V-240V AC, 50/60Hz Temperature: 0 ℃ to 40 ℃(without heat booster) -10 ℃to 50 ℃(exterior without heat booster) -35 ℃to 50 ℃(exterior with heat booster) Humidity: 20% to 95% Non-condensing |
| Dimensions and Weight |
Dimension: 1780mm X 574mm X 1043mm (H x W x D) Weight: approx. 432kg |
| Model No. | KT1688-A9 |
