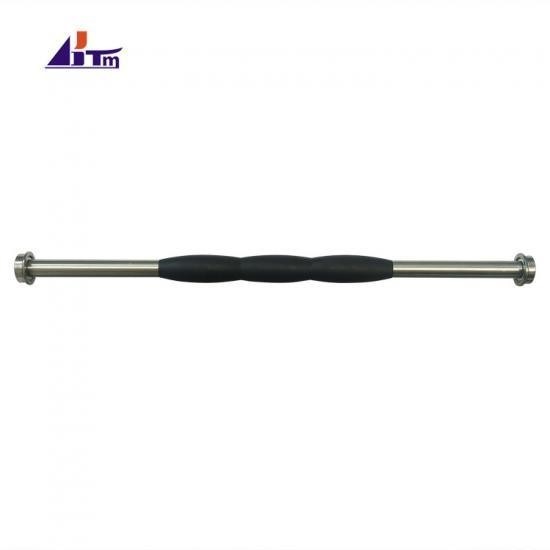

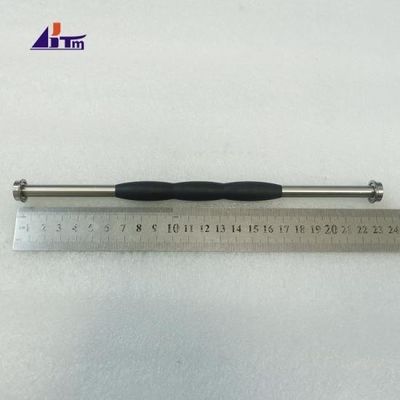

Diebold 5500 AFD Presenter Shaft Assy 49242460000F 49-242460-000F

The Diebold 5500 AFD Presenter Shaft Assembly is a mechanical shaft assembly designed for the banknote transport and presentation mechanism of the Diebold 5500 AFD (Active Front Dispense) system.

The assembly is identified by P/N 49-242460-000F, also written as 49242460000F. It is described in parts references as SHAFT, ASSY, TPR, OVERMOLDED 5500 and is associated with the Diebold 5500 AFD transport/presenter assembly.

The shaft assembly is part of the mechanical drive and transport system inside the Diebold 5500 AFD module. It works with rollers, belts and other transport components to help move banknotes through the dispensing path.

The TPR overmolded construction provides a gripping surface for the banknote transport mechanism. A properly functioning shaft assembly helps maintain consistent movement and positioning of notes during the dispensing process.

A worn or damaged shaft can affect the mechanical performance of the AFD transport and presenter system. Depending on the condition of the assembly, symptoms may include:

• Irregular banknote transport
• Slipping during note movement
• Feeding or presentation errors
• Abnormal mechanical noise
• Inconsistent note positioning
• Increased ATM downtime

Replacing the complete shaft assembly can be a practical solution when the original shaft or its overmolded gripping surface has become worn.

Tiger Spare Parts Co., Ltd. supplies spare parts for Diebold, Diebold Nixdorf and other major ATM brands.

For Diebold 5500 and AFD systems, our supply range can include both complete assemblies and individual replacement components, such as:
