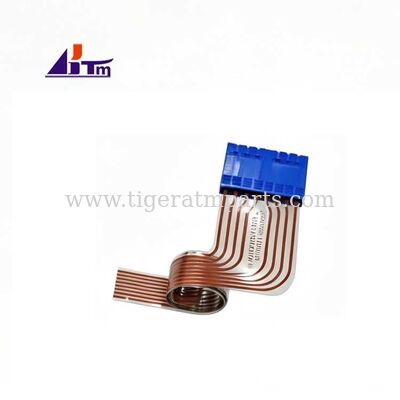

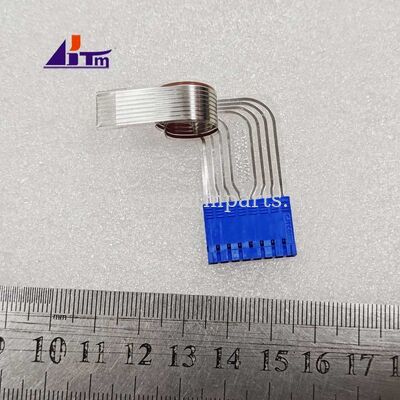

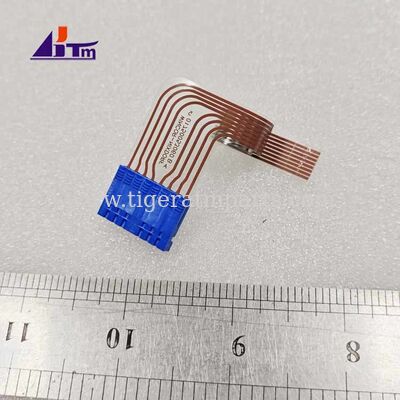

01750053060 Wincor Nixdorf CMD-V4 Flex Board MDMS Extension 1750053060

The Wincor Nixdorf 01750053060 MDMS Extension Flex Board is a flexible data connection component used inside the CMD-V4 MDMS Double Extractor configuration for Wincor Nixdorf XE Series ATMs.

In this application, the flex board functions as the data cable between the Measuring Station and the MDMS CMD-V4 mechanism, providing the electrical connection required for communication between the relevant components.

The 01750053060 Flex Board is used in the MDMS section of the CMD-V4 Double Extractor 01750051761. Its specific application is associated with the Measuring Station, where it serves as the data connection between the measuring station and the CMD-V4 MDMS mechanism.

This means the part should be understood as a functional interconnection component, rather than a standalone electronic control board.

• Connects the Measuring Station with the CMD-V4 MDMS mechanism
• Provides the required data/electrical connection
• Supports communication within the Double Extractor configuration
• Installed as part of the internal CMD-V4 MDMS wiring arrangement

Flexible cables used inside ATM mechanisms are exposed to repeated movement and mechanical stress. Replacement may be required when the original flex connection has:

• Visible cracks or physical damage
• Connector or contact problems
• Intermittent communication
• Signs of wear from repeated movement
• Been damaged during module repair or disassembly
• Become unreliable after long-term operation

For ATM service companies, replacing the specific flex connection can avoid unnecessary replacement of the complete CMD-V4 mechanism.

Tiger can supply various spare parts for Wincor Nixdorf CMD-V4, CMD-V4 MDMS and XE Series ATM systems, including:
