Product Details:
|

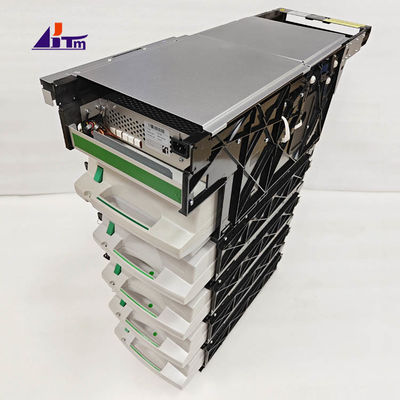

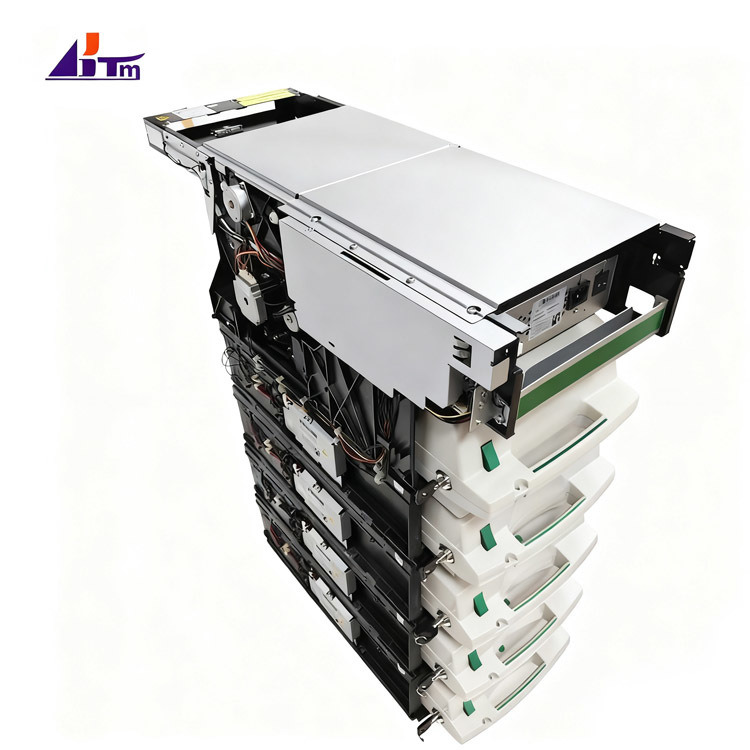

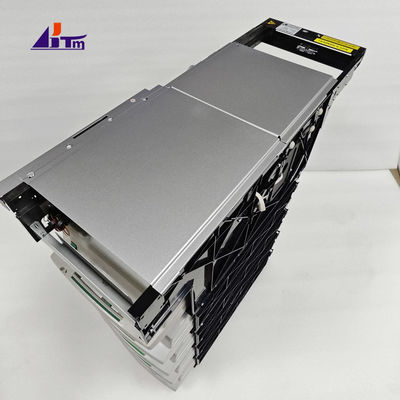

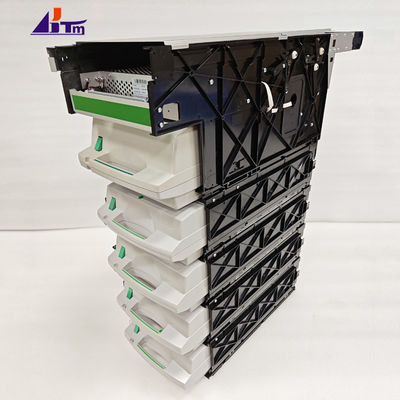

| Description: | NMD100 NMD200 NMD300 Note Dispenser | Brand: | Glory/ NMD/ DeLaRue/ Triton |
|---|---|---|---|
| Used For: | GRG,NMD,Delarue,Talaris,Glory H22N,H68N,8240,9250 Etc. ATMs | Type: | ATM Cash Dispenser And Spare Parts |
| Quality Control: | 100% Pre-Shipment Testing By Certified Engineers | Warranty: | 90 Days |
| Highlight: | Glory NMD ATM note dispenser,NMD100 NMD200 NMD300 ATM parts,Glory NMD100 ATM parts |
||
The NMD 100 contains three advanced features, unique to Glory technology:
We supply a comprehensive range of genuine and OEM-compatible components for the Glory NMD series. Below is a selection of the parts we can provide:
| Part No. | Description |
|---|---|
| A004819 | Bundle Output Unit (BOU 100) |
| A004818 | Bundle Carriage Unit (BCU 100) |
| A002832 | Stack Presenter Controller |
| A006230 | Power Supply 150 Magnetec |
| A007446 | Power Supply 126 Roal |
| A007057 | Extension Kit FS 180 |
| A006878 | Extension Kit FS 130 |
| A006877 | Extension Kit FS 85 |
| A002809 | Screw PTK-K35x8FZ |
| A006273 | Protective Cover |
| A006274 | Cover |
| A005904 | Protection SP |
| A007399 | Screw PT-K40x8 |
| 6957322 | Screw MRT-TT 4x6 |
| A004502 | Bracket |
| 6957303 | Screw MRT-TT 3x6 |
| 6960202 | Washer |
| A007353 | Ground |
| A003547 | Bracket |
| A007347 | Ground |
| 6957123 | Screw MRT M4 x 8 |
| 6960201 | Washer Locking |
| 6970104 | Nut M6 M4 |
| 6960145 | Washer |
| A006202 | Bracket Plate |
| A006202 | Screw MRT M4xM8 FZB |
| A005540 | Stacker Presenter Front Service (SPF 100) |
| A002809 | Screw PTK K35x8FZB |
| A004819 | Bundle Output Unit (BOU 100) |
| A004818 | Bundle Carriage Unit (BCU 100) |
| A002832 | Stack Presenter Controller |
| A006230 | Power Supply 150 Magnetec |
| A007302 | Power Supply 150 Roal |
| A007356 | Extension Kit RS 130 |
| A007350 | Extension Kit RS 85 |
| A002809 | Screw PTK-K35x8FZ |
| A006273 | Protective Cover |
| A006274 | Cover |
| A005904 | Protection SP |
| A007399 | Screw PT-K40x8 |
| 6957322 | Screw MRT-TT 4x6 |
| A004502 | Bracket |
| 6957303 | Screw MRT-TT 3x6 |
| 6960202 | Washer |
| A007353 | Ground |
| A003547 | Bracket |
| A007347 | Ground |
| 6957123 | Screw MRT M4 x 8 |
| 6960201 | Washer Locking |
| 6970104 | Nut M6 M4 |
| 6960145 | Washer |
| A006202 | Bracket Plate |
| A006202 | Screw MRT M4xM8 FZB |
| A005541 | Stacker Presenter Front Service (SPF 100) |
| A002809 | Screw PTK K35x8FZB |
| A003873 | Note Qualifier (NQ 100) |
| A007612 | Note Stacker (NS 102) |
| A003912 | Note Diverter (ND 100) |
| A004655 | Central Machine Controller incl. Coverplate (CMC 100) |
| A006500 | Frame (FR 101) |
| A005274 | Firmware 2001-03.XX |
| A004277 | Belt |
| A004082 | Belt |
| A006741 | Bracket |
| 6620018 | Rails (Pair) |
| A005420 | Plate Support |
| 6942111 | Screw Torx RTK ST3.5x6.5 |
| A006500 | Frame (FR 101) |
| A004656 | Note Feeder Controller (NFC 100) |
| A003911 | Note Feeder (NF 100) |
| A002791 | Belt |
| A006284 | Belt Cover |
| 6942111 | Screw |
| A007453 | Cable Cover |
| A002809 | Screw |
| A004168 | CAN Cable NFC – NFC |
| A003203 | Power Cable NFC – NFC |
| A007399 | Screw |
| A004093 | DE Kit 1 |
| A003871 | Reject Vault RV 301 |
| A004348 | Note Cassette NC 301 |
| A003277 | Carriage Motor Cable |
| A004054 | BCU Sensor, Cable incl. Sensor |
| A003971 | BCU Reject Sensor, Cable incl. Sensor |
| A004054 | BCU Sensor Cable incl. Sensor (Front Service) |
| A002803 | BCU Sensor Cable incl. Sensor (Rear Service) |
| A003270 | SPC – RV Connector Cable |
| A003201 | Power PS – SPC Cable |
| A003267 | Power PS – NSC Cable |
| A003276 | Power PS – CMC Cable |
| A003200 | CAN Cable CMC – SPC |
| A003263 | Puls Disc Cable |
| A003264 | NQ Cable |
| A003266 | Communication Cable CMC – NSC |
| A002897 | Com Cable, with Handshaking |
| A005560 | Com Cable, without Handshaking |
| A004168 | CAN Cable, NFC – NFC |
| A003203 | Power, NFC – NFC |
| A003204 | Note Cassette Connector Cable |
| A003278 | BOU Cable |
| A003370 | BOU Exit Sensor |
| A002949 | Screw |
| A002809 | Screw |
| A007453 | Cover |
| A007399 | Screw |
| A006284 | Protection Plate |
| A006283 | Protection Plate |
| 6942111 | Screw |
| A003262 | Shutter Sensor PCB |
| A007321 | Connector (Female) |
| A006378 | Connector (Female) |
| A006205 | Cover |
| A006204 | Cover |
| A004755 | Wire Routing DHURC-4-01 |
When it comes to sourcing reliable spare parts for your Glory NMD dispensers, our factory is your trusted partner. Here is why:
Contact us today to get competitive pricing on Glory NMD note dispensers and spare parts. Let us be your trusted partner for all ATM needs.
